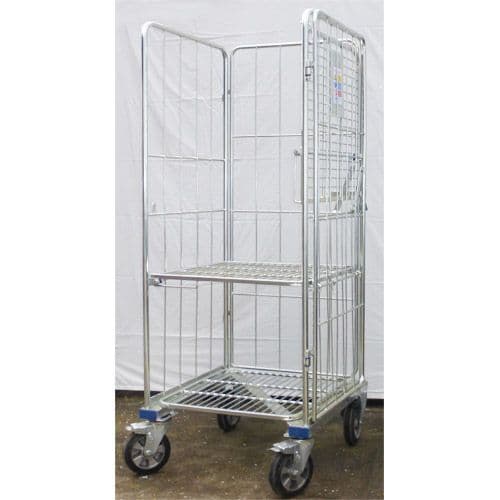

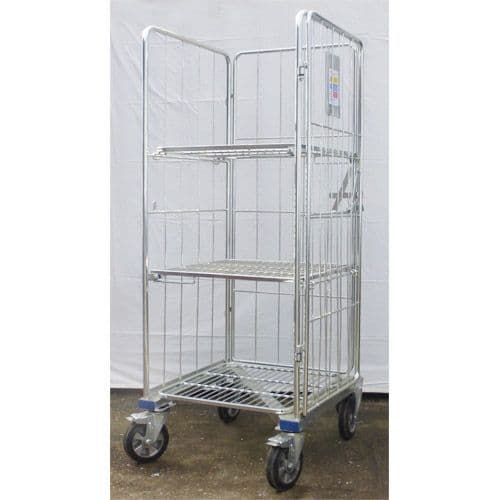

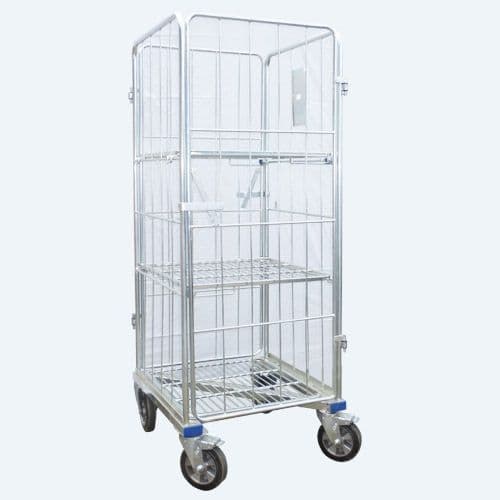

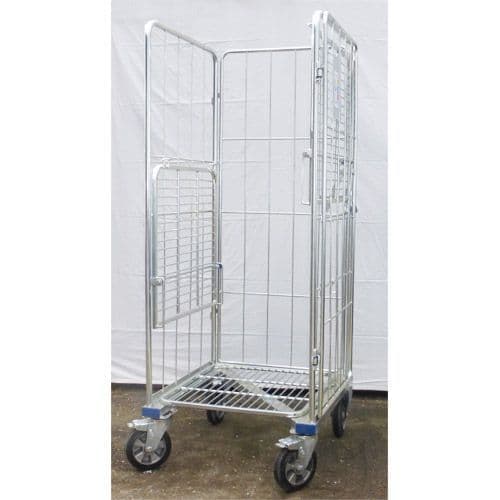

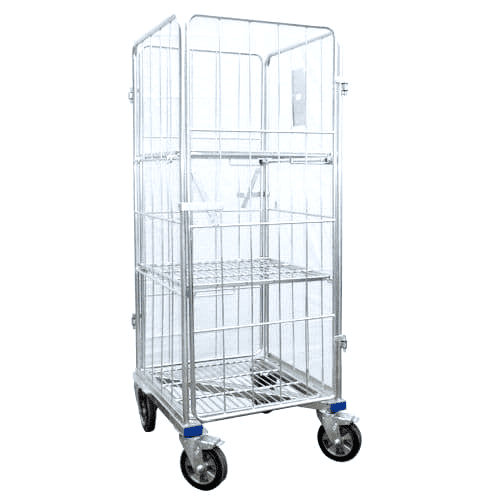

4 Sided Z-Frame Roll Cage

• A versatile light weight roll cage
• Strong and robust Z frame design

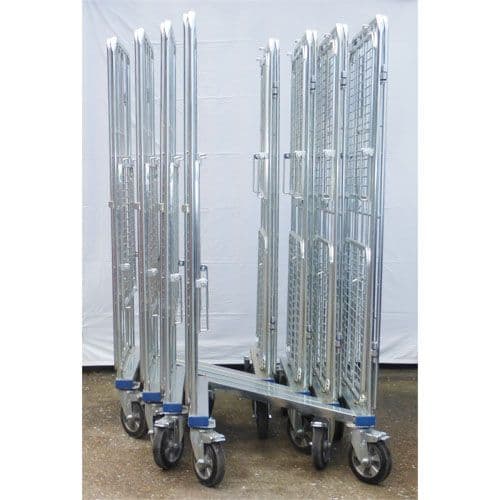

• Cages are nestable which saves space when not in use
• 200mm Rubber wheels
• 2x braked swivel & 2x fixed castors
• The Overall Safe Working Load capacity is 500kg:
  • Bottom shelf load capacity: 200kg
  • Middle Shelf load capacity: 150kg
  • Top Shelf load capacity: 150kg

Overall Length:	810mm
Overall Width:	745mm
Overall Height:	1895mm

INTERNAL DIMENSIONS (LxW)
Bottom Shelf:	700mm x 645mm
Middle Shelf:	700mm x 685mm
Top Shelf:      700mm x 685mm

Space between bottom and middle shelf:	505mm
Space between middle and top shelf:     505mm

GROUND TO BOTTOM OF CAGE
Side:	245mm
Front:	285mm
