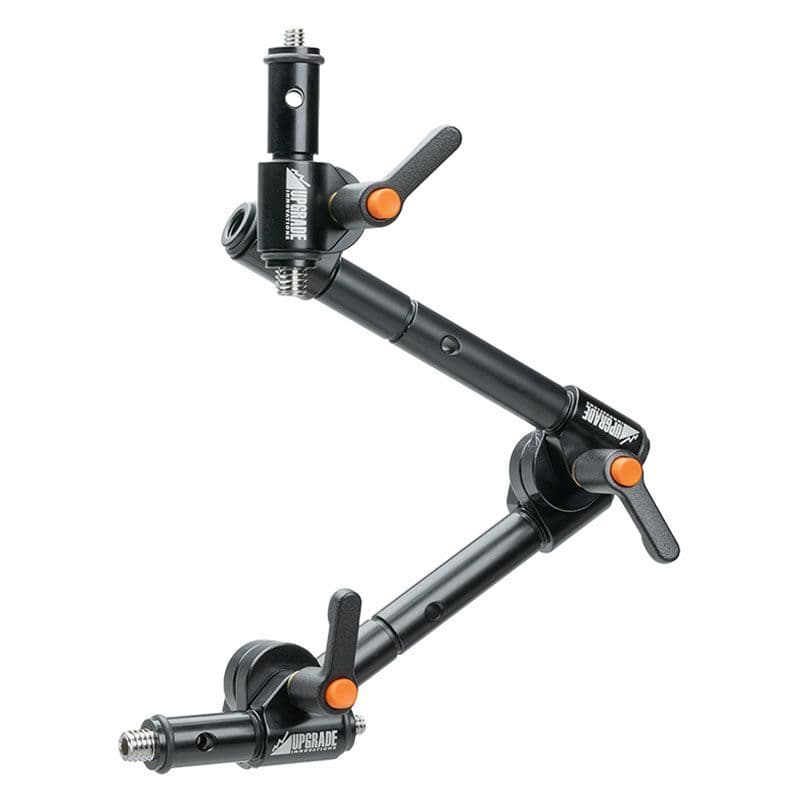

Double 6in Rudy Arm – Universal 1/4-20 & 3/8-16

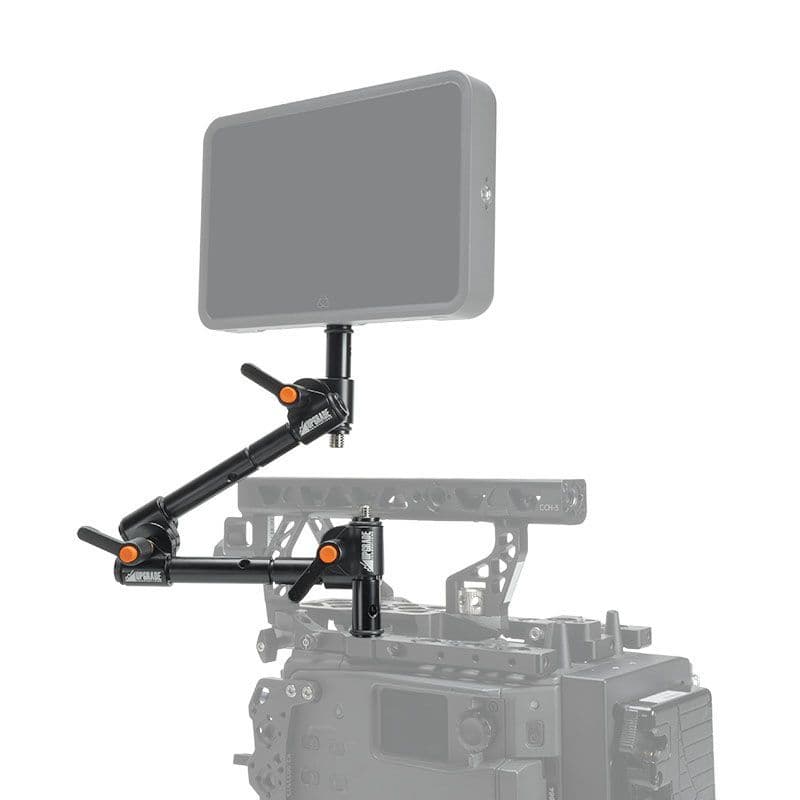

The Double 6" Rudy Arm – Universal 1/4-20 & 3/8-16 is designed for universal use with industry standard 1/4-20 and 3/8-16 mounting options on each end, three independent locking pivot points for local control and two 6" length 15mm rods.

This modular lightweight design is Upgrade Innovations'  base Rudy Double Arm Kit, and is an ideal accessory to keep on hand.

Supports up to 6.8kg / 15lbs
Total Reach of 33 cm / 13"
Weight: 0.36kg / 0.79 lbs

The Double 6" Rudy Arm – Universal 1/4-20 & 3/8-16 includes:

2x 15mm Rod – 6" Length.
Lightweight and durable.

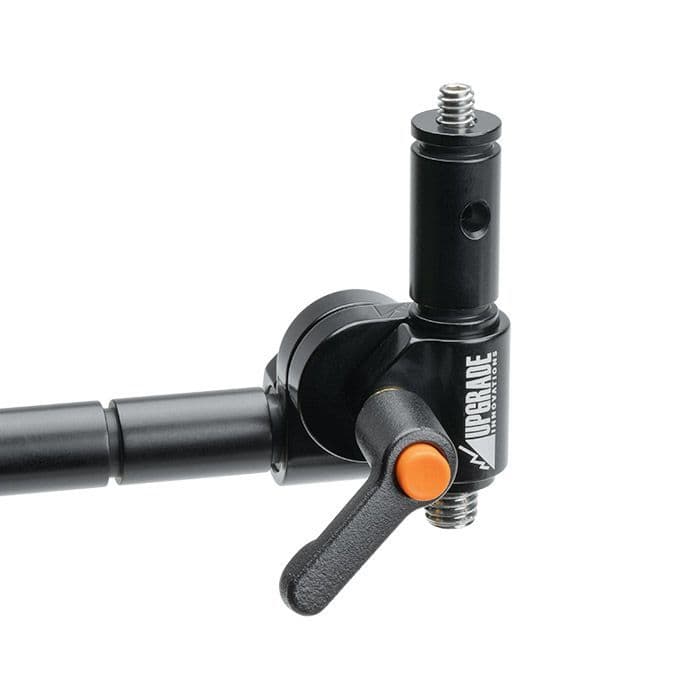

2x 15mm Pivot Clamp Ball-Loc with Adjustable Lever.
Use as an anchor point for superior hold.

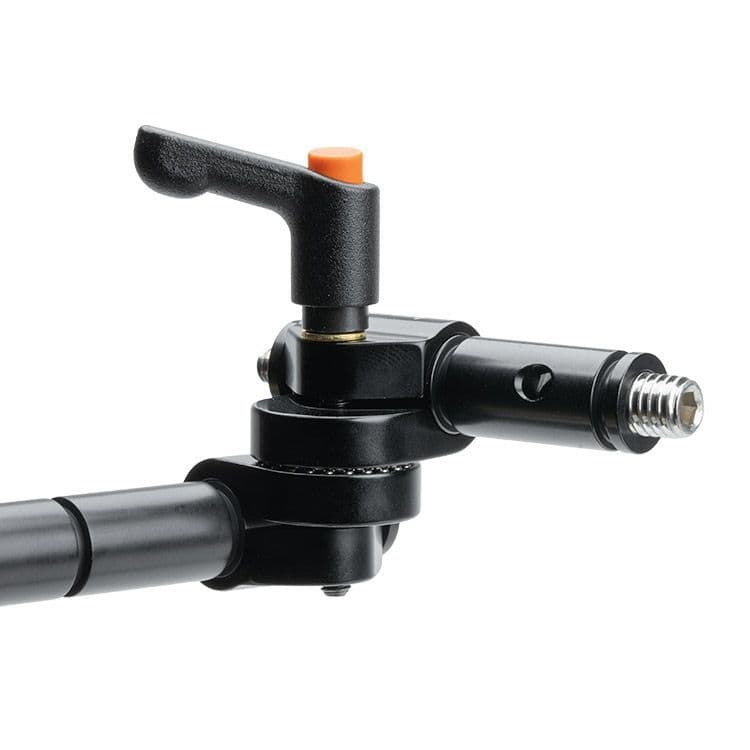

1x 15mm Pivot Clamp Friction-Loc with Adjustable Lever.
Ideal on monitor or accessory side for fine adjustments.

2 x 15mm Mounting Spud 1/4 and 3/8 Male Thread – 2.5"
Cross holes to help wrench in to place when mounting.

O-Ring Kit

Add or remove sections of the arm with the Upgrade Innovations unique O-Ring design. Remove larger, captive O-rings from the 15mm rod or spuds to remove/adjust sections of the arm. Smaller friction o-rings allow for controlled adjustments along the rods.

The Rudy Arm system is interchangeable, so you can use this arm in conjunction with other Rudy Arm components and 15mm accessories. Build possibilities are truly endless with the entire arm being a 15mm mounting surface (always check load rating when re-configuring parts).

Solidly built with premium 6061 aircraft aluminium, Mil-Spec anodizing & stainless steel hardware.
