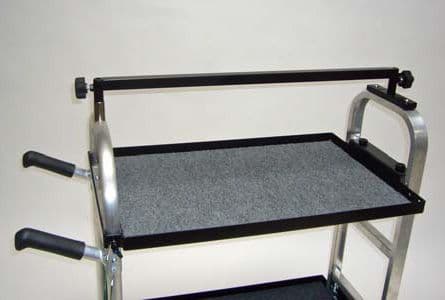

Mag Mini Monitor Horizontal Cross Bar MAG-SH MINI

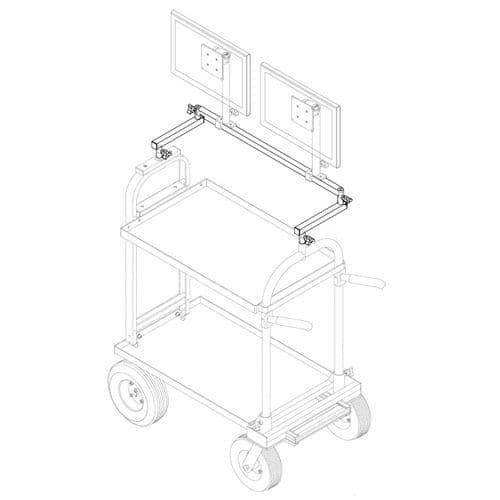

Unit anchors to two 5/8” Baby Pins at each end of the cart (MAG-NP CTR and MAG-S). You can use up to three “Snap-On” 5/8” Baby Pins (TR-04 SHP) to run along the length of the bar allowing you to install up to three (3) 17” Monitors side by side.
Note: You may offset the Monitor Horizontal Cross Bar 8 1/4 inches towards the back or front of the cart by using two Offset Arms (MAG-V OS).
| Material: | Steel |
| Colour: | Black |
| Maximum Capacity: | 22kg |
| Dimensions (D x W x H): | 1080 x 38 x 67 mm |
| Weight: | 1.8kg |
Requirements: Mag U-Handle 5/8” Baby Pin and Mag 5/8" Nose Pin (Center) or Mag Tripod Holder with 5/8” Baby Pin.
Conflicts: Mag Sound Tray.
Suggestions: Mag Offset Arm (MAG-V OS), Mag VESA Tilt Head (LD, MD, HD), Mag LCD 4”, 8” or 12” Tilt Head Pin Adapter, Mag Baby Spud 4”, 6” or 8” Extension.
| MPN: | MAG-SH MINI |
| Brand: | Magliner Backstage |
| Product Code: | MAG-SH MINI |
| Weight: | 3kg |
