Voyager Deck Support Bars - Voyager 30

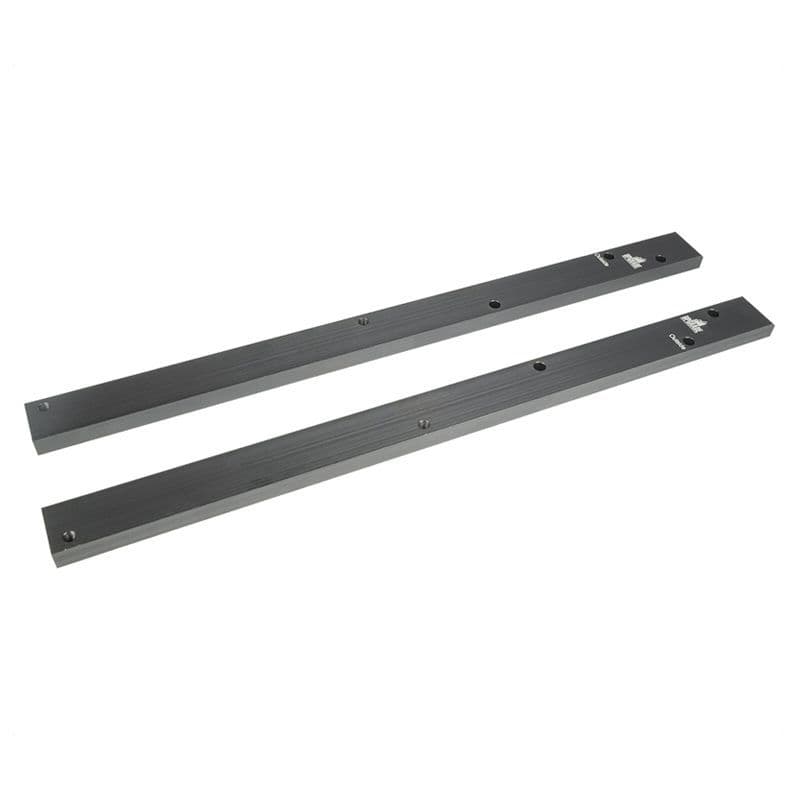

The Voyager Deck Support Bars add rigidity and stiffness to the top deck for the Whaley Rail to support DIT workstations on the Voyager cart.

• The support bars help to prevent the Voyager deck from flexing under heavier loads by balancing the load over the length of the top deck
• The Voyager Deck Support Bars are 1/2" thick and are mounted underneath both sides of the cart
• Voyager 30 Support Bar Dimensions: 19" x 1.25" x 1/2"
• Weight of two Support Bars: 1.275kg

The through holes at the back of the Support Bar utilize the Whaley Rail cheese plate mounting holes; meaning
only two additional through holes are needed on the cart deck for top mounting screws into the Support Bar.

Button Head screws are used for minimal impact on top deck working surface area.

Screws provided:
1/4-20" x 7/8" Button Head Socket Screws x4 – Longer screws to replace existing Whaley Rail cheese plate screws.
1/4-20" x 1/2" Button Head Socket Screws x 4

Solidly built with Anodized Aircraft Aluminium. Final product is Black Anodized.
